Color
Natural
Orientation
Right-Hand
Product Name

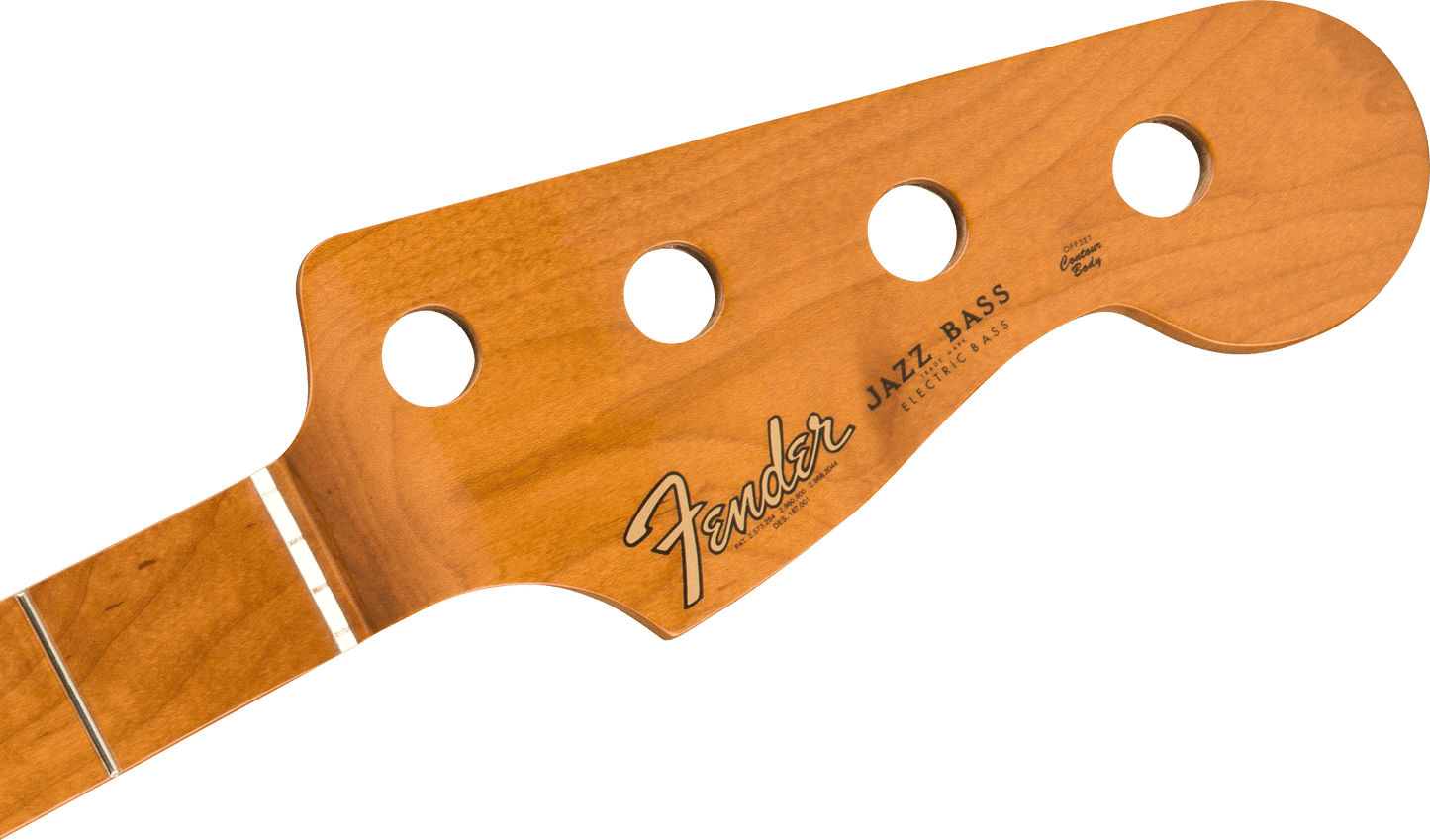

Roasted Maple Vintera® '60's Jazz Bass® Neck, 20 Vintage Frets, 7.25", "C" Shape
Series
Roasted Vintera®
Roasted Maple Vintera® '60's Jazz Bass® Neck, 20 Vintage Frets, 7.25", "C" Shape
Regular price
£499.00
Regular price
£499.00
£499.00
Sale price
Unit price
per
inc. VAT*
Roasted Maple Vintera® '60's Jazz Bass® Neck, 20 Vintage Frets, 7.25", "C" Shape
Roasted Maple Vintera® '60's Jazz Bass® Neck, 20 Vintage Frets, 7.25", "C" Shape
Regular price
£499.00
Regular price
£499.00
£499.00
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over £50.
Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.
This genuine Fender Jazz Bass neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a "vintage C" neck profile and 7.25"-radius maple fingerboard with 20 vintage frets, for classic playing feel. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Jazz Bass authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Roasted maple neck
- "Vintage C"-shaped profile; 7.25"-radius maple fingerboard
- 20 vintage frets; pre-slotted synthetic bone nut
- Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
- Vintage-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 4-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.734” (18.64 mm)
Scale Length
34" (864 mm)
Miscellaneous
Style
Vintage
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Vintage "C"
Neck Thickness
1st Fret - .815" (20.70 mm), 12th Fret - .1000" (25.40 mm)
Number of Frets
20
Nut Material
Synthetic Bone
Nut Width
1.5" (38.1 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
