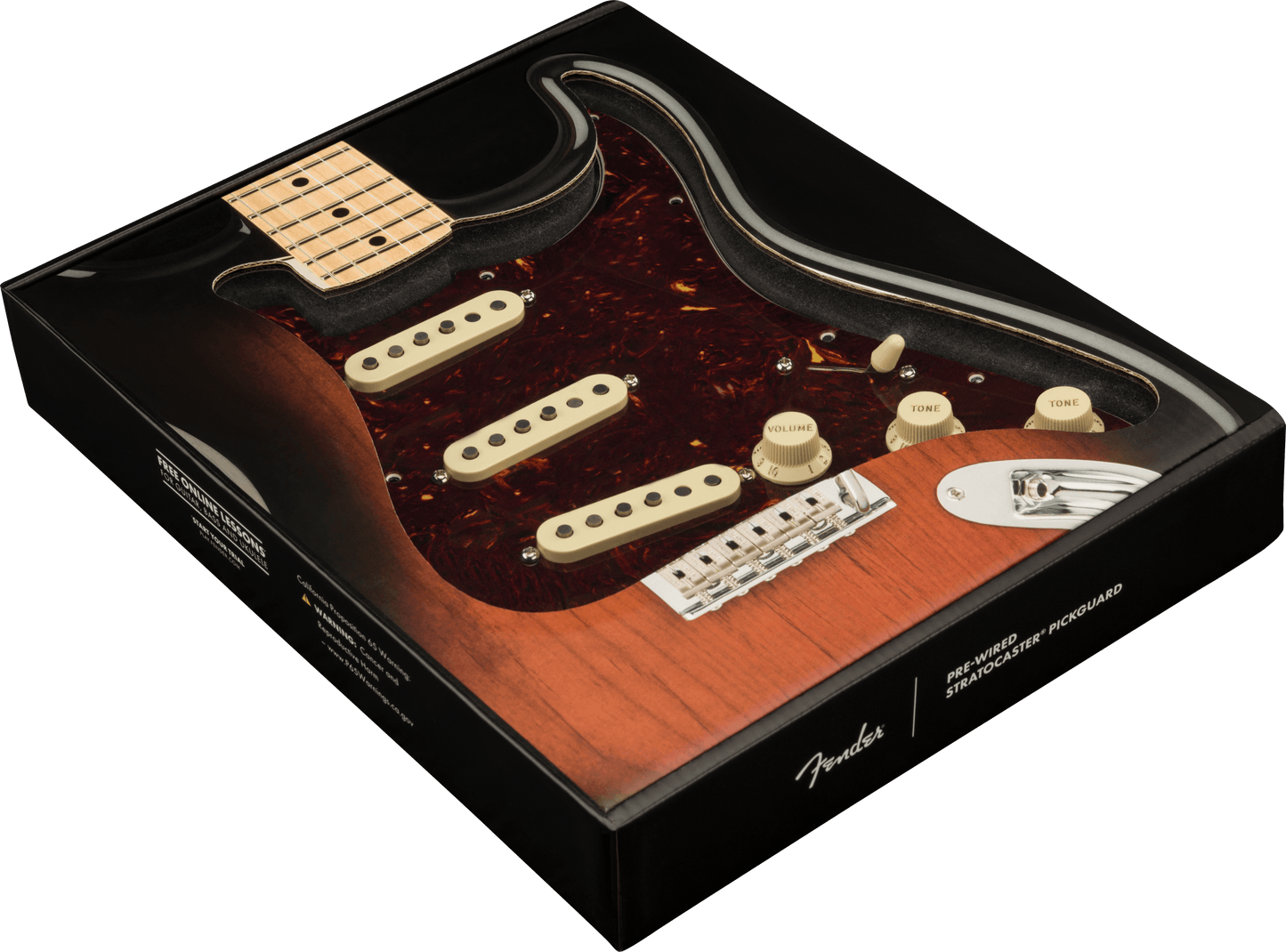

Pre-Wired Strat® Pickguard, Tex-Mex SSS

£159.00
£159.00 £159.00
4% Off
Sale Sold out
inc. VAT*

Sale

Pre-Wired Strat® Pickguard, Tex-Mex SSS

Pre-Wired Strat® Pickguard, Tex-Mex SSS

Model #: 0992343506
£159.00
£159.00 £159.00
4% Off
Sale Sold out
inc. VAT*
  • Tex-Mex Pickups
  • Polysol-coated magnet wire
  • Staggered pole pieces for balanced output
  • Alnico 5 magnets for focus and enhanced dynamics
  • Reverse-wound middle pickup to eliminate hum
  • Overwound bridge pickup for maximum output
  • Vinyl-coated output wire and plastic bobbin
View product details
Color: Black
Ply: 3-Ply
View full details

Pre-Wired Strat® Pickguard, Tex-Mex SSS

£159.00
£159.00 £159.00
4% Off
Sale Sold out

      Details

      Summary

      Overview

      Customize your tone with the Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as our iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the new guard and you're ready to rock with pure Fender sound.

      Overview

      Features

      • Tex-Mex Pickups
      • Polysol-coated magnet wire
      • Staggered pole pieces for balanced output
      • Alnico 5 magnets for focus and enhanced dynamics
      • Reverse-wound middle pickup to eliminate hum
      • Overwound bridge pickup for maximum output
      • Vinyl-coated output wire and plastic bobbin

      Specs

      Electronics

      Bobbin Material

      Nylon

      Bridge Pickup

      Tex-Mex™ Single-Coil Strat®

      Controls

      Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)

      DC Resistance

      Neck: 6.5K, Middle: 6.4K, Bridge: 7.4K

      Inductance

      Neck/Middle: 2.75 Henries, Bridge: 3.7 Henries

      Lead Wire

      Vinyl-covered

      Magnet Type

      Alnico 5

      Magnet Wire

      Polysol-coated

      Middle Pickup

      Tex-Mex™ Single-Coil Strat®

      Neck Pickup

      Tex-Mex™ Single-Coil Strat®

      Pickup Configuration

      SSS

      Pole Pieces

      Staggered

      Potentiometers

      CTS 250K

      Power Requirements

      Passive

      Shielded

      Yes

      Switching

      5-Position Blade Switch

      General

      Color

      Shell

      Orientation

      Right-Hand

      Product Name

      Pre-Wired Strat Pickguard, Tex-Mex SSS, Tortoise Shell 11 Hole PG

      Series

      Pre-Wired Pickguards

      Hardware

      Control Knobs

      Aged White Plastic

      Hardware Finish

      Chrome

      Mounting Type

      11-Hole Modern

      Pickguard

      3-Ply Tortoiseshell

      Pickguard Ply

      3-Ply

      Pickup Covers

      Aged White

      Switch Tip

      Aged White

      Miscellaneous

      Case Pack Qty

      8

      Commodity Code

      8518.10.8030

      Style

      3 Single-Coil

      Specs

      Electronics

      Bobbin Material

      Nylon

      Bridge Pickup

      Tex-Mex™ Single-Coil Strat®

      Controls

      Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)

      DC Resistance

      Neck: 6.5K, Middle: 6.4K, Bridge: 7.4K

      Inductance

      Neck/Middle: 2.75 Henries, Bridge: 3.7 Henries

      Lead Wire

      Vinyl-covered

      Magnet Type

      Alnico 5

      Magnet Wire

      Polysol-coated

      Middle Pickup

      Tex-Mex™ Single-Coil Strat®

      Neck Pickup

      Tex-Mex™ Single-Coil Strat®

      Pickup Configuration

      SSS

      Pole Pieces

      Staggered

      Potentiometers

      CTS 250K

      Power Requirements

      Passive

      Shielded

      Yes

      Switching

      5-Position Blade Switch

      General

      Color

      Black

      Orientation

      Right-Hand

      Product Name

      Pre-Wired Strat Pickguard, Tex-Mex SSS, Black 11 Hole PG

      Series

      Pre-Wired Pickguards

      Hardware

      Control Knobs

      Aged White Plastic

      Hardware Finish

      Chrome

      Mounting Type

      11-Hole Modern

      Pickguard

      3-Ply Black

      Pickguard Ply

      3-Ply

      Pickup Covers

      Aged White

      Switch Tip

      Aged White

      Miscellaneous

      Case Pack Qty

      8

      Commodity Code

      8518.10.8030

      Style

      3 Single-Coil

      Specs

      Electronics

      Bobbin Material

      Nylon

      Bridge Pickup

      Tex-Mex™ Single-Coil Strat®

      Controls

      Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)

      DC Resistance

      Neck: 6.5K, Middle: 6.4K, Bridge: 7.4K

      Inductance

      Neck/Middle: 2.75 Henries, Bridge: 3.7 Henries

      Lead Wire

      Vinyl-covered

      Magnet Type

      Alnico 5

      Magnet Wire

      Polysol-coated

      Middle Pickup

      Tex-Mex™ Single-Coil Strat®

      Neck Pickup

      Tex-Mex™ Single-Coil Strat®

      Pickup Configuration

      SSS

      Pole Pieces

      Staggered

      Potentiometers

      CTS 250K

      Power Requirements

      Passive

      Shielded

      Yes

      Switching

      5-Position Blade Switch

      General

      Color

      Parchment

      Orientation

      Right-Hand

      Product Name

      Pre-Wired Strat Pickguard, Tex-Mex SSS, Parchment 11 Hole PG

      Series

      Pre-Wired Pickguards

      Hardware

      Control Knobs

      Aged White Plastic

      Hardware Finish

      Chrome

      Mounting Type

      11-Hole Modern

      Pickguard

      3-Ply Parchment

      Pickguard Ply

      3-Ply

      Pickup Covers

      Aged White

      Switch Tip

      Aged White

      Miscellaneous

      Case Pack Qty

      8

      Commodity Code

      8518.10.8030

      Style

      3 Single-Coil

      Downloads

    • Wiring Diagram
    • Fender® 1-Year Limited Warranty
