Color
Natural
Orientation
Right-Hand
Product Name
American Vintage II Modified 1957 Stratocaster® Neck, 21 Narrrow Tall Frets, 9.5" Radius, Maple
Series
Necks
Limited Edition American Vintage II Modified 1957 Stratocaster® Neck, 21 Narrrow Tall Frets, 9.5" Radius, Maple
Regular price
£809.00
Regular price
£809.00
£809.00
Sale price
Unit price
per
inc. VAT*
Limited Edition American Vintage II Modified 1957 Stratocaster® Neck, 21 Narrrow Tall Frets, 9.5" Radius, Maple
Limited Edition American Vintage II Modified 1957 Stratocaster® Neck, 21 Narrrow Tall Frets, 9.5" Radius, Maple
Regular price
£809.00
Regular price
£809.00
£809.00
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over £50.
Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview

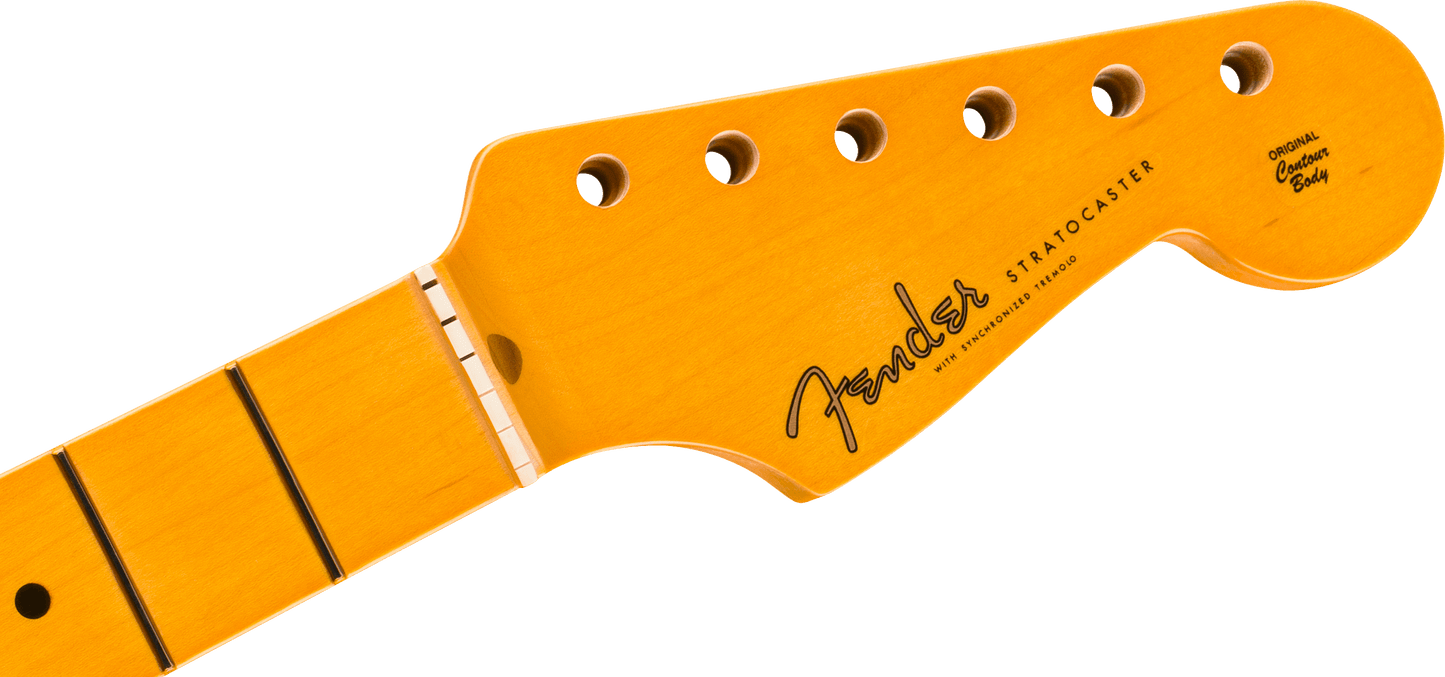

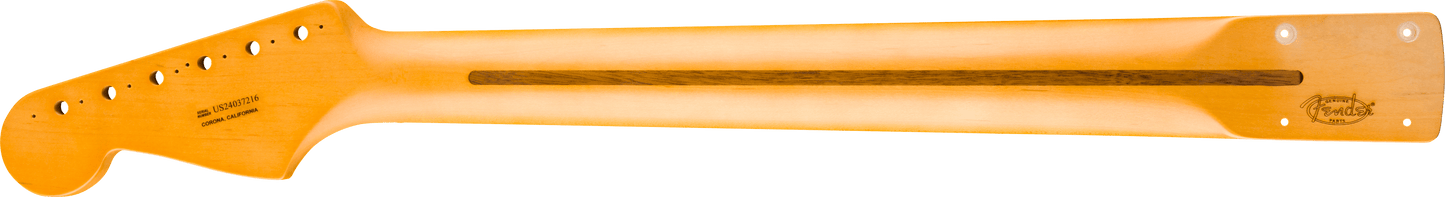

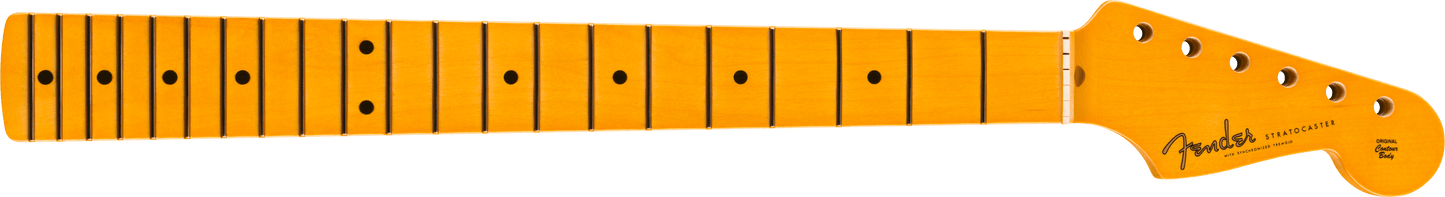

The American Vintage II Modified Series features authentic neck profiles from Fender's past with appointments that provide a modern feel and playability. Crafted at our Corona, California manufacturing facility, this American Vintage II Modified 1957 Stratocaster® neck is a 1-piece maple neck that features a "V"-shaped profile and 9.5"-radius fingerboard with 21 narrow-tall 6105 frets.
A satin nitrocellulose lacquer finish provides for faster movement up and down the neck and the bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple fingerboard with 9.5" radius
- 1957 "V" neck profile
- 21 narrow-tall 6105 frets
- Bone nut
- Satin nitrocellulose lacquer finish
- Vintage-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Narrow Tall (6105)
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Vintage
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
Satin Nitrocellulose Lacquer Finish with Gloss Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
1957 "V"
Neck Thickness
1st Fret - .875" (22.22 mm), 12th Fret - .985" (25.02 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Vintage-Style Butt Adjust
Truss Rod Nut
Vintage-Style Slotted
