DC Resistance
Bridge 10.58k - 11.24k, Neck 9.98 - 10.59K
Inductance
Bridge 5.3H, Neck 4.2H
Lead Wire
Single conductor coax
Magnet Type
CuNiFe
Magnet Wire
Polysol-coated
Output
Vintage
Pickup Configuration
Single Pickup
Pole Pieces
“3+3” exposed
CuNiFe® Wide Range Humbucker
Regular price
£199.00
Regular price
£199.00
£199.00
Sale price
Unit price
per
inc. VAT*

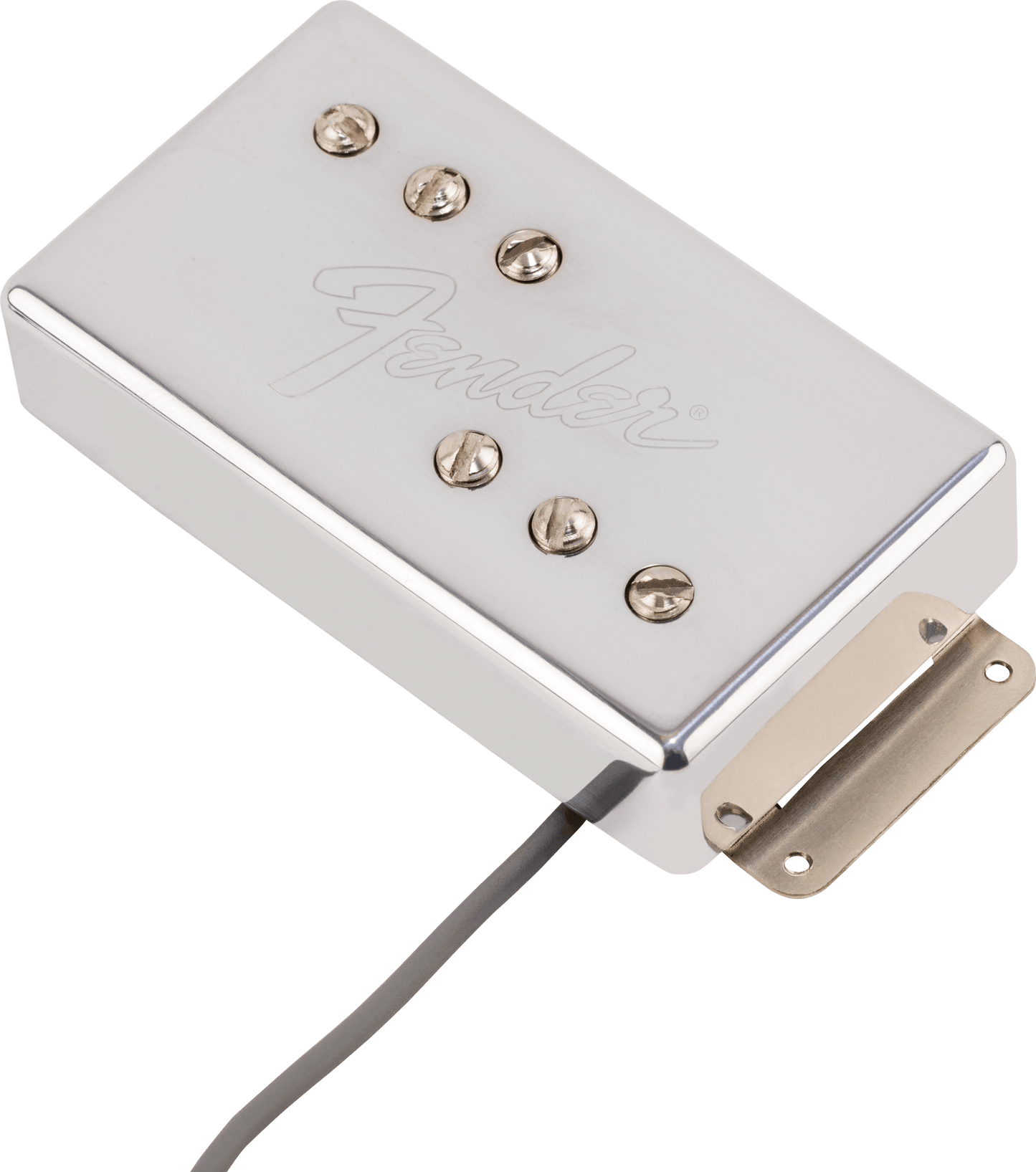

CuNiFe® Wide Range Humbucker
CuNiFe® Wide Range Humbucker
Model #:
0992297001
Regular price
£199.00
Regular price
£199.00
£199.00
Sale price
Unit price
per
inc. VAT*
- Fender exclusive CuNiFe magnets
- Polysol wire
- DC Resistance: Bridge 10.58k - 11.24k, Neck 9.98 - 10.59K
- Installation hardware included
Couldn't load pickup availability
Details
Summary
Overview
The first authentic CuNiFe®-magnet-powered Wide Range pickup in more than 40 years delivers rich bell-like humbucking tone with full bass and clear treble. CuNiFe pickups have "hi-fi" clarity yet never lose their attack and definition no matter how hard they are pushed. A chrome cover with a "3 3" exposed pole piece design and Fender logo completes the vintage-'70s vibe.
As popular music roared with the fatter tones of humbuckers at the dawn of the 1970s, Fender hired acclaimed pickup designer Seth Lover to create a distinctly Fender-flavored take on a higher-output dual-coil pickup. The resulting Wide Range pickup used large bobbins and threaded CuNiFe-rod magnets to achieve its distinctively brilliant sound, as heard on that era's Telecaster® Custom, Thinline and Deluxe guitars. Sought after by musicians of all genres for decades, the original-era real CuNiFe-magnet pickups disappeared when the Telecaster Custom was discontinued in 1979.
Overview
Features
- Fender exclusive CuNiFe magnets
- Polysol wire
- DC Resistance: Bridge 10.58k - 11.24k, Neck 9.98 - 10.59K
- Installation hardware included
Specs
Electronics
General
Color
Chrome
Cover Color
Chrome
Orientation
Right-Hand
Product Name
CuNiFe™ Wide Range Bridge Pickup, Chrome
Series
CuNiFe
Miscellaneous
Case Pack Qty
5
Commodity Code
8518.10.8030
Style
Humbucking
Tone
Vintage
Specs
Electronics
DC Resistance
Bridge 10.58k - 11.24k, Neck 9.98 - 10.59K
Inductance
Bridge 5.3H, Neck 4.2H
Lead Wire
Single conductor coax
Magnet Type
CuNiFe
Magnet Wire
Polysol-coated
Output
Vintage
Pickup Configuration
Single Pickup
Pole Pieces
“3+3” exposed
General
Color
Chrome
Cover Color
Chrome
Orientation
Right-Hand
Product Name
CuNiFe™ Wide Range Neck Pickup, Chrome
Series
CuNiFe
Miscellaneous
Case Pack Qty
42
Commodity Code
8518.10.8030
Style
Humbucking
Tone
Vintage
