Color
Natural
Orientation
Right-Hand
Product Name
Classic Series 60's Telecaster® Neck, 21 Vintage Frets, Pau Ferro
Series
Necks
Classic Series 60's Telecaster® Neck, 21 Vintage Frets, Pau Ferro
Regular price
£389.00
Regular price
£389.00
£389.00
Sale price
Unit price
per
inc. VAT*
Classic Series 60's Telecaster® Neck, 21 Vintage Frets, Pau Ferro
Classic Series 60's Telecaster® Neck, 21 Vintage Frets, Pau Ferro
Model #:
0991603921
Regular price
£389.00
Regular price
£389.00
£389.00
Sale price
Unit price
per
inc. VAT*
- 7.25"-radius pau ferro fingerboard
- "C"-shaped neck profile
- 21 vintage-style frets; white dot inlays
- Pre-slotted synthetic bone nut
- Gloss urethane finish
Couldn't load pickup availability
Details
Summary
Overview

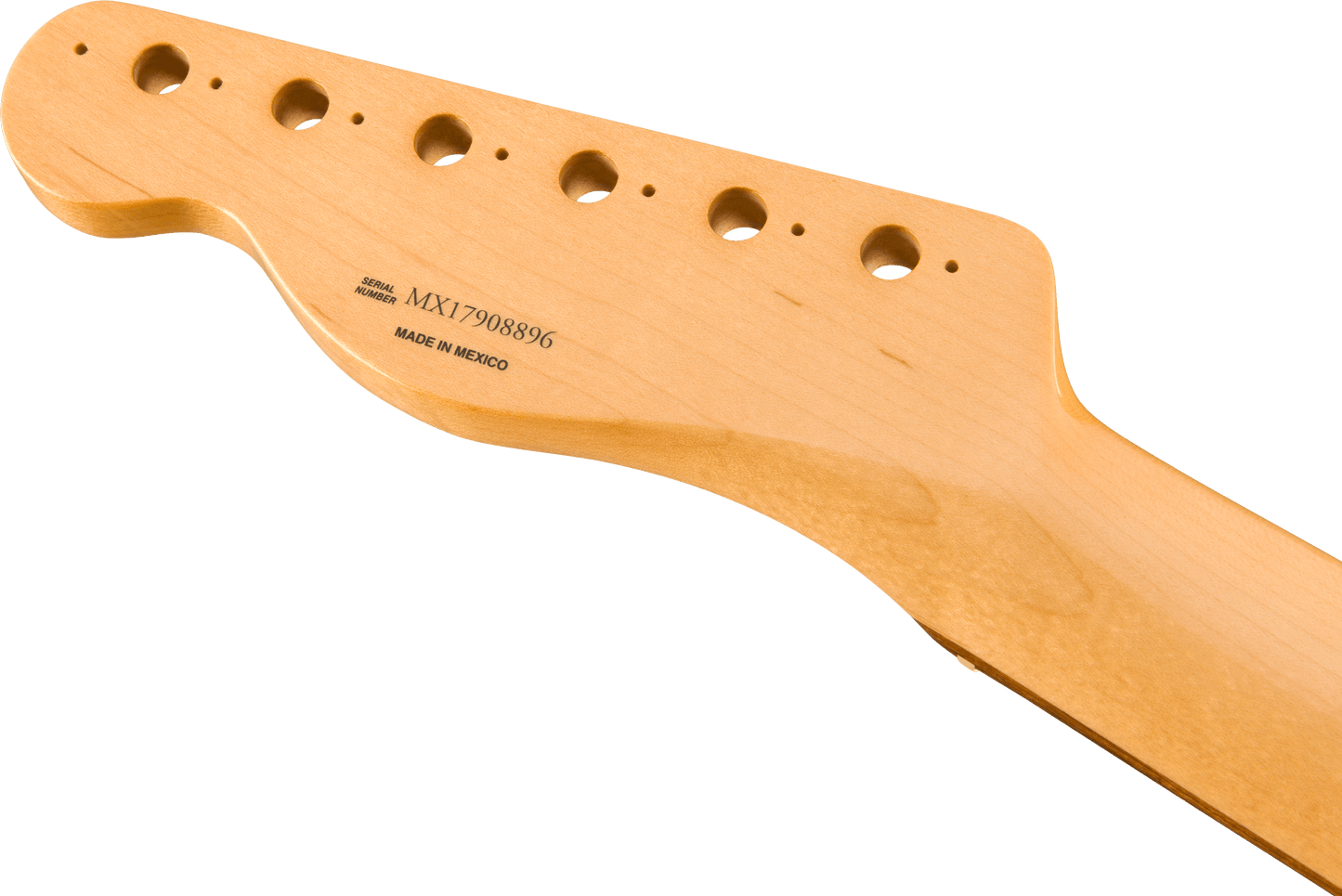

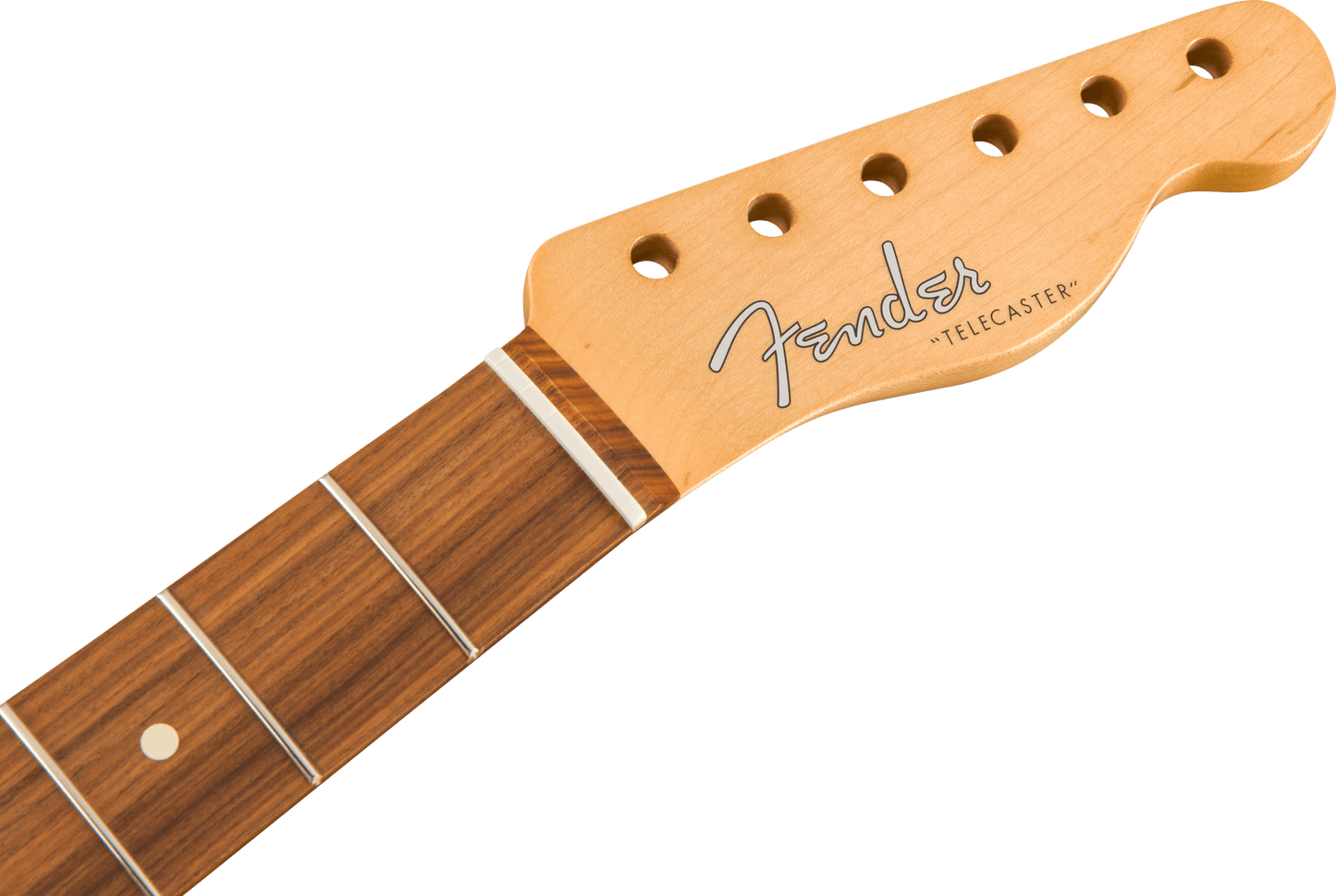

Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style Fender® Telecaster® neck features a comfortable "C"-shaped profile and 7.25"-radius pau ferro fingerboard with 21 vintage-style frets.
The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots, and a gloss urethane finish offers a vintage feel. This replacement neck is the perfect way to give your Tele® an authentically '60s feel.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- 7.25"-radius pau ferro fingerboard
- "C"-shaped neck profile
- 21 vintage-style frets; white dot inlays
- Pre-slotted synthetic bone nut
- Gloss urethane finish
Specs
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage-Style
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple
Neck Mounting
4-Bolt
Neck Shape
"C" Shape
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .900” (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
