Color
Natural
Orientation
Right-Hand
Product Name

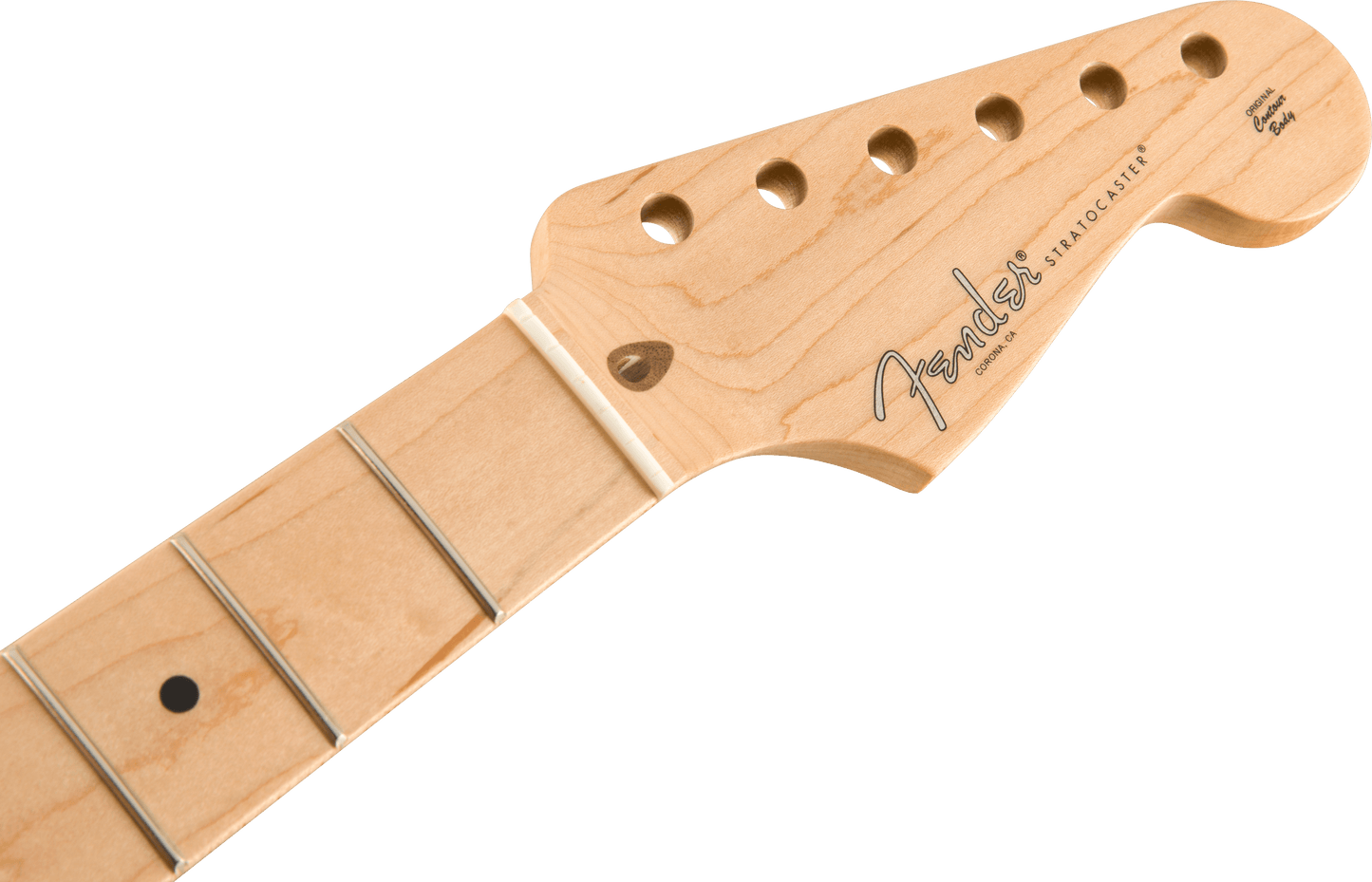

American Professional Stratocaster® Neck, 22 Narrow Tall Frets, 9.5" Radius, Maple
Series
Necks
American Professional Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius
Regular price
£609.00
Regular price
£609.00
£609.00
Sale price
Unit price
per
inc. VAT*
American Professional Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius
American Professional Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius
Model #:
0993012921
Regular price
£609.00
Regular price
£609.00
£609.00
Sale price
Unit price
per
inc. VAT*
- Maple Stratocaster neck with walnut stripe
- 9.5"-radius maple or rosewood fingerboard
- 22 narrow-tall frets; black dot inlays
- Satin urethane back finish with gloss headstock
- Pre-slotted bone nut
Couldn't load pickup availability
Details
Summary
Overview
Crafted in the same facility as our U.S.-made instruments, the American Professional Stratocaster Neck is well-suited to any playing style. Designed for speed and comfort, this neck sports our innovative "Deep C" neck profile, which, thanks to its increased mass and altered geometry, offers a natural fret-hand feel. Other features include a 9.5"-radius maple or rosewood fingerboard, 22 narrow-tall frets, bone nut and a satin urethane finish on the back.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple Stratocaster neck with walnut stripe
- 9.5"-radius maple or rosewood fingerboard
- 22 narrow-tall frets; black dot inlays
- Satin urethane back finish with gloss headstock
- Pre-slotted bone nut
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Modern
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt Configurable
Neck Shape
Deep "C"
Neck Thickness
1st Fret - .820" ( mm), 12th Fret - .920" ( mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Dot
String Nut
Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
