Color
Natural
Orientation
Right-Hand
Product Name

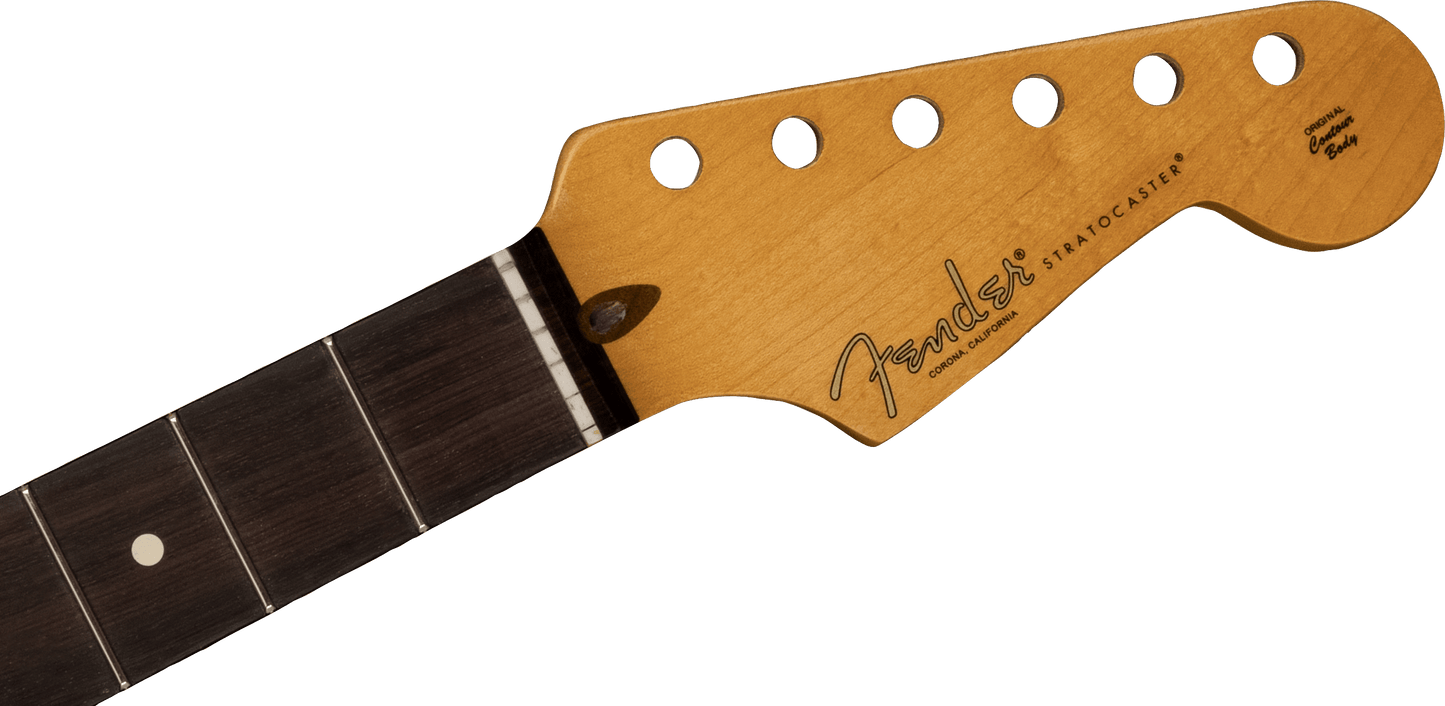

American Professional II Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius, Rosewood
Series
Necks
American Pro II Strat Neck, 22 Narrow Tall Frets, 9.5" Radius
Regular price
£475.00
Regular price
£475.00
£475.00
Sale price
Unit price
per
inc. VAT*
American Pro II Strat Neck, 22 Narrow Tall Frets, 9.5" Radius
American Pro II Strat Neck, 22 Narrow Tall Frets, 9.5" Radius
Model #:
0993911921
Regular price
£475.00
Regular price
£475.00
£475.00
Sale price
Unit price
per
inc. VAT*
- Maple Stratocaster neck with walnut stripe
- 9.5"-radius maple or rosewood fingerboard
- 22 narrow-tall frets; black dot inlays
- Satin urethane "super natural" back finish with gloss headstock
- Pre-slotted bone nut
Couldn't load pickup availability
Details
Summary
Overview
Crafted in the same facility as our U.S.-made instruments, the American Professional II Stratocaster Neck draws from more than sixty years of innovation, inspiration and evolution to meet the demands of today's working player. Our popular Deep "C" neck now sports smooth rolled fingerboard edges and a "Super-Natural" satin finish that provides a supremely comfortable feel. Other features include a 9.5"-radius maple or rosewood fingerboard, bone nut and 22 narrow-tall frets for easy bending.
The neck pocket has 4 offset pre-drilled pilot holes so if it is being installed on a standard body, a fifth pilot hole will need to be drilled.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple Stratocaster neck with walnut stripe
- 9.5"-radius maple or rosewood fingerboard
- 22 narrow-tall frets; black dot inlays
- Satin urethane "super natural" back finish with gloss headstock
- Pre-slotted bone nut
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
9.5" (241 mm)
Neck Finish
“Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt Offset
Neck Shape
Deep "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .920" (22.86 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
Specs
General
Color
Natural
Orientation
Right-Hand
Product Name
American Professional II Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius, Maple
Series
Necks
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
“Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt Offset
Neck Shape
Deep "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .920" (22.86 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
