Color
Natural
Orientation
Right-Hand
Product Name
50's Modified Esquire Neck, 22 Narrow Tall Frets, 9.5", U Shape, Roasted Maple
Series
Fender® Parts
50's Modified Esquire Neck, 22 Narrow Tall Frets, 9.5", U Shape, Roasted Maple
Regular price
£335.00
Regular price
£335.00
£335.00
Sale price
Unit price
per
inc. VAT*
50's Modified Esquire Neck, 22 Narrow Tall Frets, 9.5", U Shape, Roasted Maple
50's Modified Esquire Neck, 22 Narrow Tall Frets, 9.5", U Shape, Roasted Maple
Model #:
0990217920
Regular price
£335.00
Regular price
£335.00
£335.00
Sale price
Unit price
per
inc. VAT*
- One-piece roasted maple neck with walnut "skunk" stripe
- Roasted maple fingerboard with 9.5" radius
- 22 narrow tall frets
- Pre-slotted bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Couldn't load pickup availability
Details
Summary
Overview

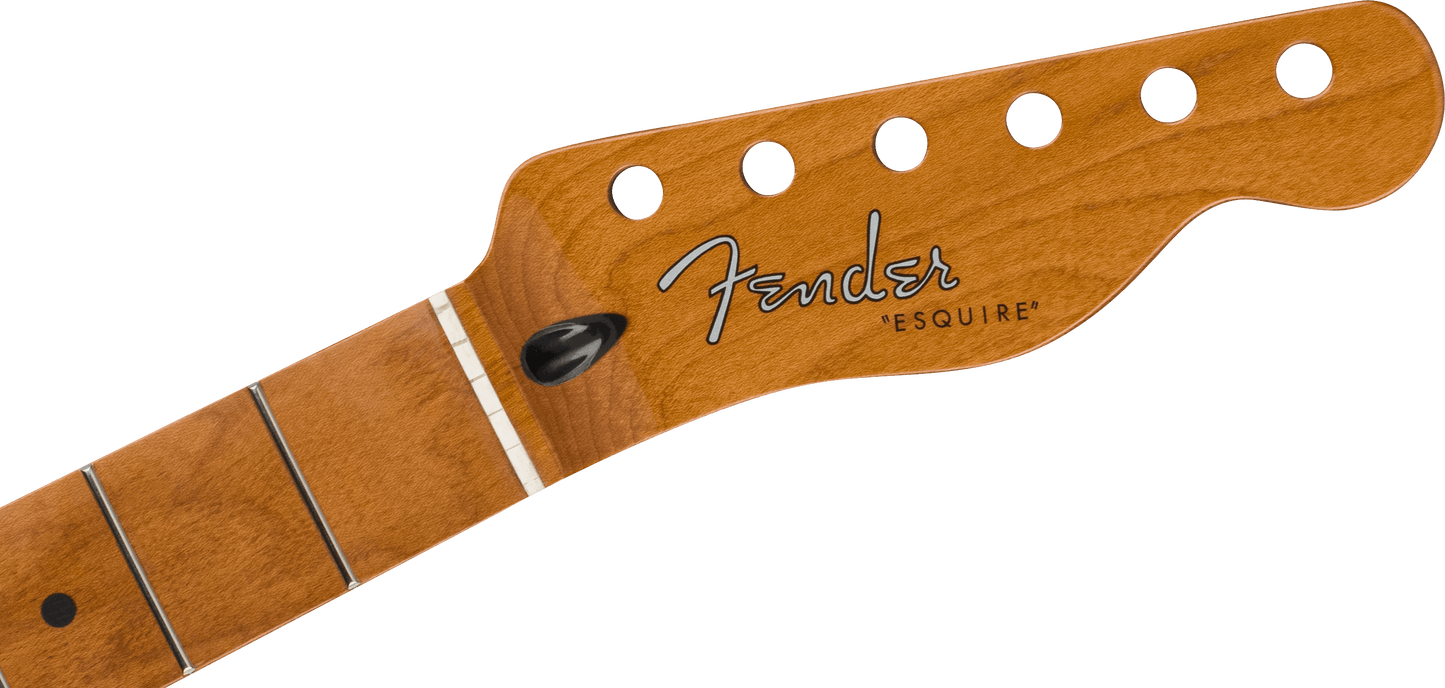

There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice. This roasted maple Modified Esquire neck has the back shape of an early 50's Esquire but with a flatter fingerboard radius and larger frets for modern playability.
Fender replacement necks are made at Fender manufacturing facilities to the same specifications as those used on our instruments. This Ensenada, Mexico-made Esquire neck features a maple fingerboard, a 9.5" radius and 22 narrow tall frets. The one-piece roasted maple neck has a thick early 50's "U" profile with a smooth satin urethane finish on the front and back of the neck. The headstock has a gloss finish with an authentic "Esquire" decal to complete the classic look.
The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, with genuine headstock logo decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- One-piece roasted maple neck with walnut "skunk" stripe
- Roasted maple fingerboard with 9.5" radius
- 22 narrow tall frets
- Pre-slotted bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Early '50s "U"
Neck Thickness
1st Fret - .880” (22.35 mm), 12th Fret - .990” (25.15 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black Micarta, 3/32" (2.38 mm)
String Nut
Bone
Truss Rod
Standard
Truss Rod Nut
3/16" Hex Adjustment
